Removing and installing bumper cover (front)

Removing

–	Remove lock carrier cover → Chapter.

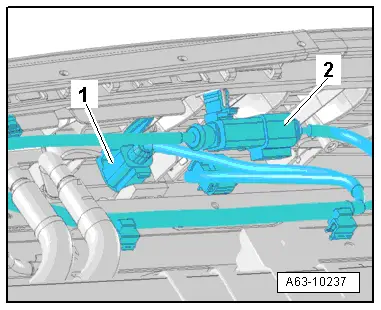

–	Unplug electrical connector -2- for ambient temperature sensor -G17- and electrical connector -1- for front parking aid senders.

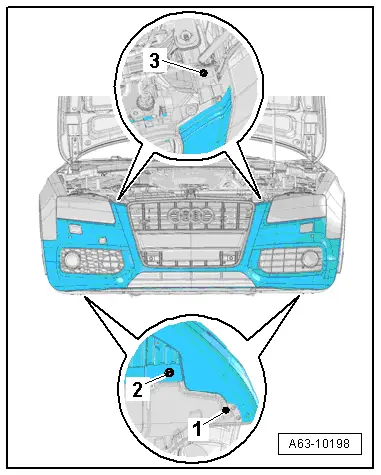

–	Remove bolt -3-.

–	Unscrew bolt -2- and remove quick-release fastener -1- on noise insulation panel at bumper cover (front).

–	Remove wheel housing liner → Chapter.

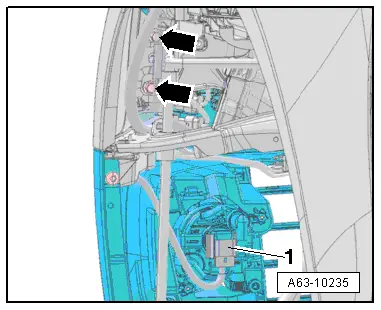

–	Unplug electrical connector -1- for fog light.

–	Remove bolts -arrows-.

–	Detach side sections from side panel (front) and detach bumper cover towards the front.

Installing

l	Tightening torques → Chapter

Installation is carried out in the reverse order; note the following:

–	Install wheel housing liner → Chapter.

–	Install lock carrier cover → Chapter.
