A4 Mk3

Dimensions for emblems
Dimensions for emblems
  Caution
t  The bonding surfaces on the body must be free of dust and grease.
t  Clean bonding surfaces with cleaning solution -D 009 401 04-.
t  Heat bonding surfaces with an hot-air blower to around 40°C.

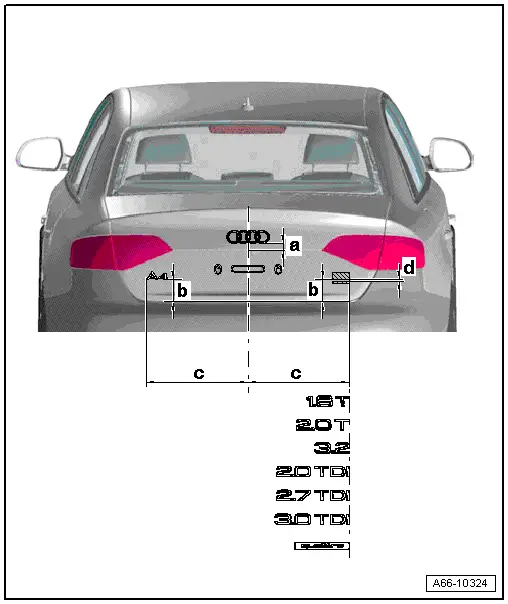

Saloon
–  Press model emblem firmly onto body, observing specified dimensions.
t  Dimension -a- = 24 mm
t  Dimension -b- = 67 mm
t  Dimension -c- = 461 mm
t  Dimension -d- = 4 mm

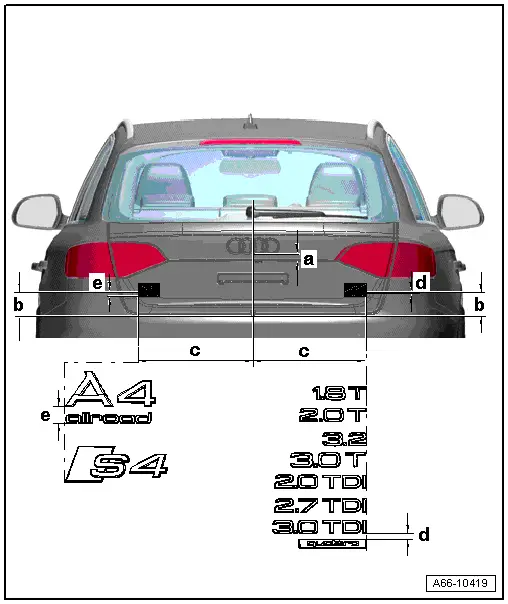

Avant
t  Dimension -a- = 20 mm
t  Dimension -b- = 89 mm
t  Dimension -c- = 458 mm
t  Dimension -d- = 4 mm
t  Dimension -e- = 21 mm
