A4 Mk3

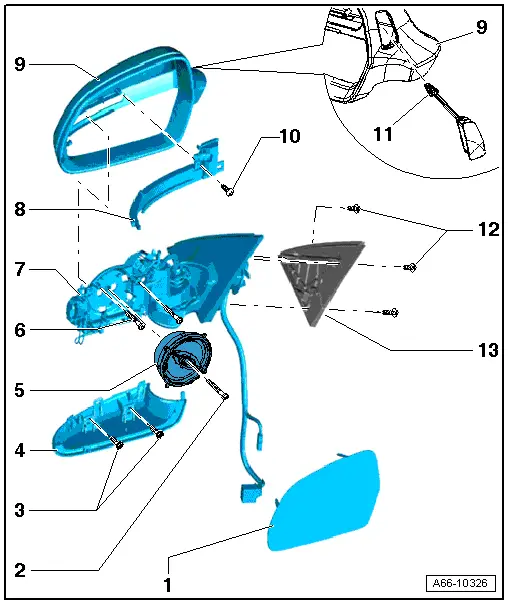

| Exploded view - exterior mirror |
| 1 - | Mirror glass |
| q | Removing and installing → Chapter |
| 2 - | Bolt |
| q | 1.5 Nm |
| 3 - | Bolt |
| q | 1 Nm |
| 4 - | Cover |
| q | For mounting for mirror adjustment unit |
| q | Removing and installing → Chapter |
| 5 - | Mirror adjustment unit |
| q | Removing and installing → Chapter |
| 6 - | Bolt |
| q | 1 Nm |
| 7 - | Mounting for mirror adjustment unit |
| q | Removing and installing → Chapter |
| 8 - | Turn signal repeater |
| q | Removing and installing → Rep. gr.94 |
| 9 - | Housing for exterior mirror |
| q | Removing and installing → Chapter |
| 10 - | Bolt |
| q | 1 Nm |
| 11 - | Warning lamp for lane change assist |
| q | Removing and installing → Rep. gr.96 |
| 12 - | Bolt |
| q | 10 Nm |
| 13 - | Seal |
