A4 Mk3

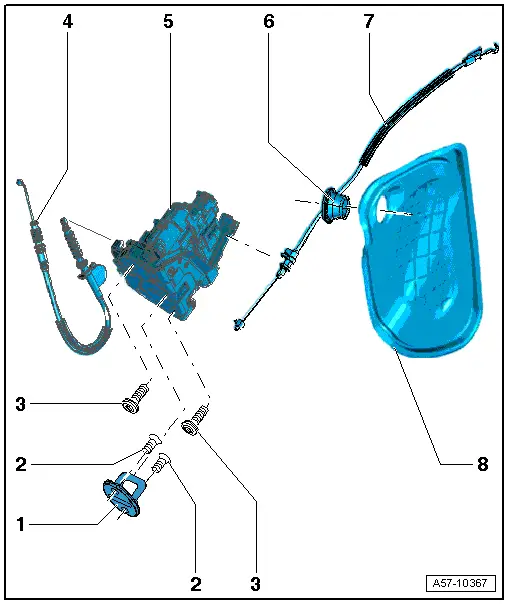

Exploded view - striker, door lock and operating cable for door opener

Exploded view - striker, door lock and operating cable for door opener
1 - Striker
q   Removing and installing → Chapter
2 - Bolt
q   25 Nm
3 - Bolt
q   19 Nm
4 - Operating cable for door lock
  Caution
Risk of malfunctions.
To prevent the operating cable from being kinked or bent too much when it is disengaged/engaged, the door lock must be removed and installed together with the mounting bracket.
The operating cable must be engaged in/disengaged from the operating lever on the door with the components removed from the vehicle.
5 - Door lock
q   Removing and installing → Chapter
6 - Grommet
q   Not available as a separate replacement part
7 - Operating cable for door opener
q   Removing and installing → Chapter
8 - Cover for inner door panel
q   Removing and installing → Chapter
