Removing and installing cover for door lock
Removing and installing cover for door lock

Removing
–  Remove lock cylinder → Chapter.
–  Remove door trim → Rep. gr.70.
–  Remove cover for inner door panel → Chapter.
–  Unscrew bolt -4-.

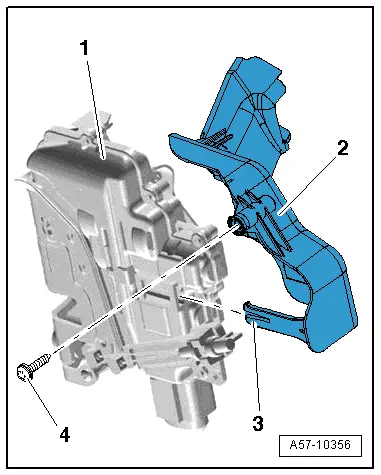

–  Press fastener -3- together and detach cover -2- from door lock -1- towards rear.
Installing
–  When installing, fastener -3- must engage audibly in door lock.
–  Tighten bolt -4- to torque → Item.
  A57-10356
