Removing and installing operating cable for door lock > < Removing and installing operating cable for door opener

A4 Mk3

Removing and installing mounting bracket
Removing and installing mounting bracket
Special tools and workshop equipment required

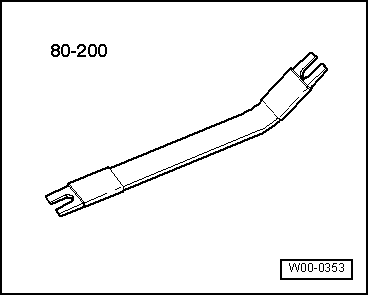

t  Removal lever -80-200 -
Removing
  Caution
Risk of malfunctions.
To prevent the operating cable from being kinked or bent too much when it is disengaged/engaged, the mounting bracket must be removed and installed together with the door lock.
Therefore the operating cable must be engaged in/disengaged from the operating lever on the door lock with the components removed from the vehicle → Anchor.
–  Remove door trim → Rep. gr.70.
–  Remove cover for inner door panel → Chapter.
  W00-0353

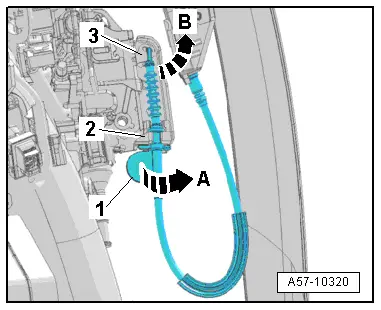

–  Turn operating cable on lever -1- 90° in direction of -arrow A- and take it out of cable support bracket -2-.
–  Turn operating cable on operating lever -3- for door lock in direction of -arrow B-.
l  The operating cable must be aligned with the opening on the operating lever.
–  Disengage operating cable from operating lever.
–  Remove exterior door handle → Chapter.
–  Remove cover for door lock.
→ Chapter
  A57-10320
–  Where fitted, disengage electrical wiring from mounting bracket -arrow-.
–  Move clear binding clip -1- of electrical wire with removal lever -80-200 -.
  Note
Use soap solution to aid removal if necessary.

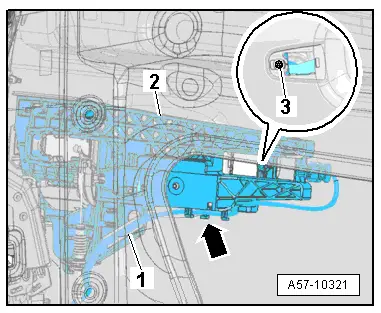

–  Unscrew bolt -3- and detach mounting bracket -2-.
  A57-10321
Installing
Installation is carried out in the reverse order; note the following:

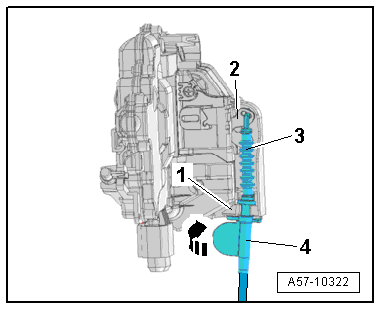

–  Engage operating cable -3- in operating lever -2- for door lock.
–  Insert operating cable into support bracket -1- and turn lever -4- 90° -arrow-.
l  Lug on lever must engage audibly in cable support bracket.
–  Install door lock cover → Chapter.
–  Install cover for inner door panel → Chapter.
–  Install door trim → Rep. gr.70.
–  Install exterior door handle → Chapter.
  A57-10322
