Removing and installing trim for exterior door handle
Removing and installing trim for exterior door handle
  Note
On vehicles without Keyless Entry system, a trim is fitted instead of the door handle contact sensor.

Removing
–  Remove exterior door handle → Chapter.

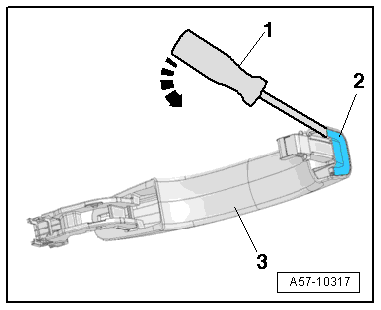

–  Lever out trim -2- for exterior door handle using a small screwdriver -1- at point indicated in illustration -arrow-.
–  Pull trim for exterior door handle out of exterior door handle -3-.
Installing
Install in reverse order of removal.
–  Push in trim for exterior door handle until it engages audibly.
–  Install exterior door handle → Chapter.
–  Install lock cylinder → Chapter.
  A57-10317
