Removing and installing door

Removing

–	Unplug electrical connector at A-pillar → Rep. gr.97.

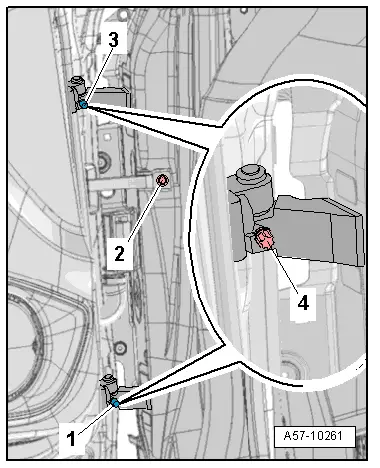

–	Unscrew bolt -2- for door arrester.

–	Detach caps -1- and -3- from studs.

–	Unscrew studs -4- from door hinge (top and bottom).

Caution

Protect paintwork on door or side panel from damage.

–	Carefully lift door off hinges.

Installing

Note

Adjustment is not required after installing the front door.
