Exploded view - outer and inner window slot trim strips > < Removing and installing cover for inner door panel

A4 Mk3

Removing and installing window regulator

Removing and installing window regulator

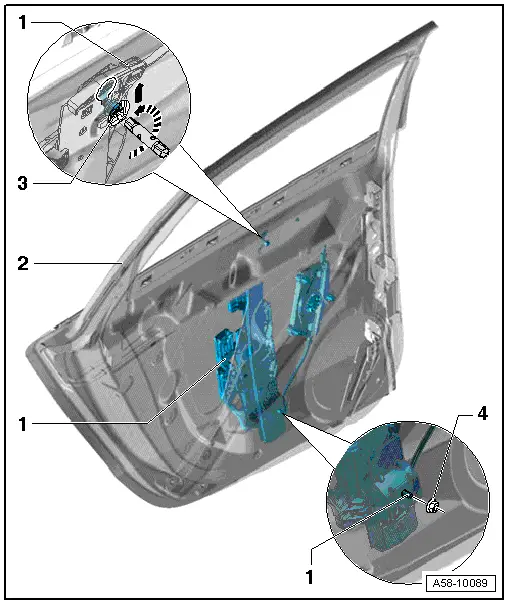

1 - Window regulator
q   Removing:
q   Door trim removed → Rep. gr.70
q   Window regulator motor removed → Chapter
q   Door window removed → Chapter
q   Cover for inner door panel removed → Chapter
–  Release threaded pins for window regulator motor and push through inner panel → Anchor.
–  Loosen nut (top), but do not remove.
–  Unscrew bottom nut and lift window regulator out of door.
2 - Door
3 - Nut
q   Only loosen to remove window regulator.
4 - Nut
q   Unscrew to remove window regulator.


Releasing threaded pins
–  Use an 11 mm socket attachment to release retaining clips -arrow- of threaded pins -3- for window regulators, positioning socket attachment on threaded pin to do so.
–  Unfasten clip -1- for cable -2- from cable guide -1- from the inside.
  A58-10105

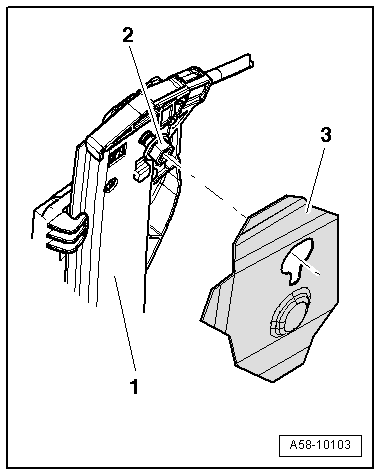

Attachment point (top) for window regulator
–  To remove window regulator -1-, only loosen nut -2-.
  A58-10103
