A4 Mk3

Removing and installing ashtray (front)
Removing and installing ashtray (front)

Removing
–  Remove insert for centre console → Chapter.

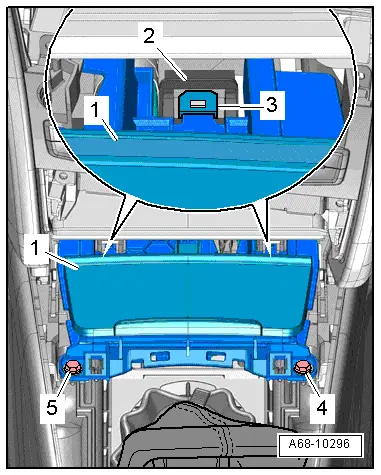

–  Remove bolts -4- and -5-.
–  Take ashtray -1- out of mounting -2- towards rear and unplug electrical connector for cigarette lighter.
Installing
Installation is carried out in the reverse order; note the following:
–  Insert ashtray (front) -1- with rubber grommet -3- in mounting -2-.
Tightening torque → Chapter
  A68-10296
