A4 Mk3

Removing and installing brackets for centre console
Removing and installing brackets for centre console

Removing
–  Remove centre console → Chapter.
–  Equipment version with aerial for entry and start authorisation: Remove interior aerial 1 for entry and start authorisation -R138- → Rep. gr.96.

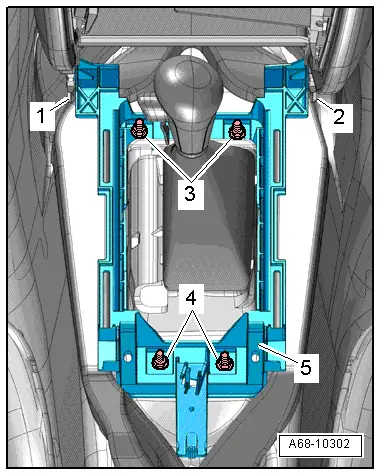

–  Remove nuts -3- and -4-.
–  Disengage bracket -5- at lugs -1- and -2- and remove.
Installing
Install in reverse order of removal.
Tightening torque → Chapter
  A68-10302
