A4 Mk3

Removing and installing cover for centre console
Removing and installing cover for centre console

Removing

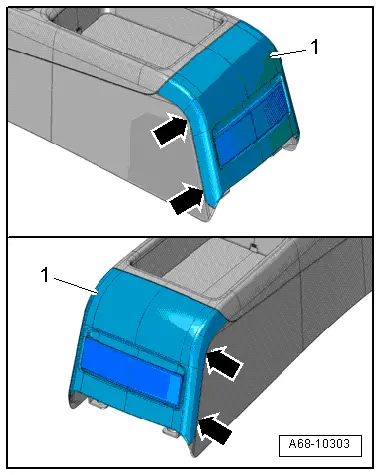

–  Starting at bottom, use a small screwdriver to carefully unclip cover -1- at sides -arrows-.
–  Swivel trim upwards and detach from centre console.
Installing
Installation is carried out in the reverse order; note the following:
–  Insert trim at top, swivel downwards and clip in.
–  Press cover for centre console onto centre console until it engages audibly.
  A68-10303
