A4 Mk3

Setting magnetic deflection zone
Setting magnetic deflection zone
It is necessary to set the magnetic deflection zone if:
l  A new automatic anti-dazzle interior mirror -Y7- is installed.
l  You have reached a distance more than two zones away from the pre-set reference zone after travelling long distances; you should then set a different magnetic deflection zone.

Setting magnetic deflection zone:
–  Press and hold button -2- for 6 to 9 seconds until compass display shows „Z“ and a number for the magnetic deflection zone.
–  Press the button repeatedly until the number of the desired magnetic deflection zone appears.
–  Select applicable deflection zone from the world map:
t  Europe → Anchor
t  North America → Anchor
t  South America → Anchor
t  Asia → Anchor
t  Africa → Anchor
t  Australia → Anchor
After a few seconds the compass display will switch from the magnetic deflection zone to the current direction/point of the compass.
–  Switch the anti-dazzle function of the interior mirror back on → Chapter after setting the magnetic deflection zone.

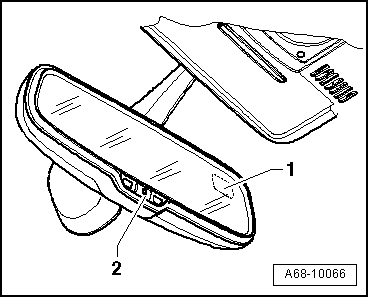

  A68-10066
