Removing and installing cushioning element for glove box lid
Removing and installing cushioning element for glove box lid

Removing
–  Switch off ignition and remove ignition key.
–  Remove dash panel end trim (passenger side) → Chapter.
–  Disengage fuse holder on right of dash panel and slide to one side → Rep. gr.97.

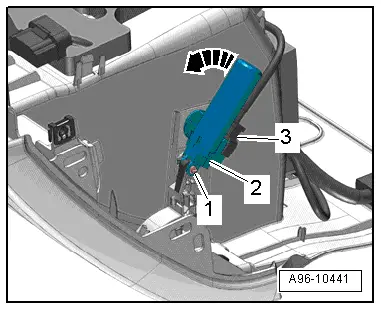

–  Unplug electrical connector -3-.
–  Pull out hinge pin -1-.
–  Release switch -2- in anti-clockwise direction -arrow- and detach.
Installing
Installation is carried out in the reverse order; note the following:
–  Engage fuse holder on right of dash panel → Rep. gr.97.
  A96-10441
