Checking belt webbing

Checking belt webbing

Procedure

–	Pull belt as far as it will go out of automatic belt retractor or lap belt adjuster.

–	Inspect belt for dirt and, if necessary, wash it with mild soap solution → Owner's Manual.

l	If the following type of damage (shown in illustrations 1 and 2) is identified on a vehicle following an accident you must renew the complete seat belt including the belt buckle.

l	If damage as shown in illustrations 1, 2 or 3 is identified on a vehicle which has not been involved in an accident, it is sufficient to only renew the damaged belt.

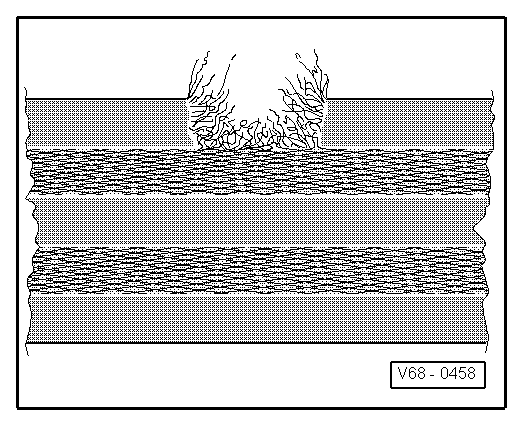

l	1 – Belt is cut, torn or chafed

V68-0458

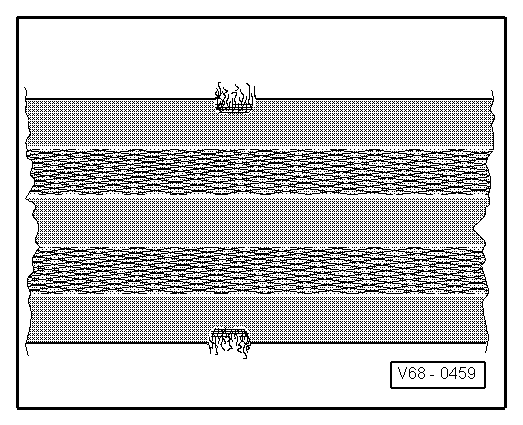

l	2 – Frayed fabric at edge of belt

V68-0459

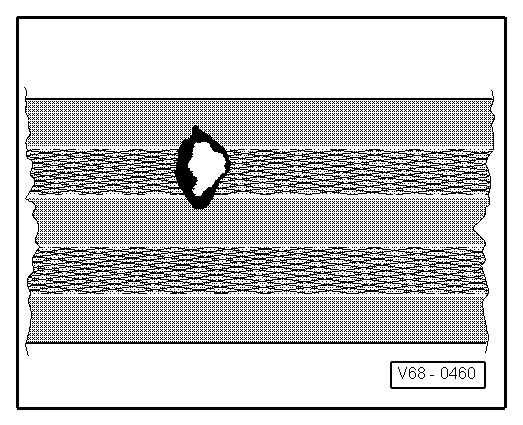

l	3 – Burn marks caused by cigarettes or similar

V68-0460
