Removing and installing centre belt guide (rear) - equipment version with fixed rear seat backrest
Removing and installing centre belt guide (rear) - equipment version with fixed rear seat backrest
Special tools and workshop equipment required

t  Removal wedge -3409-
  W00-0016
Removing

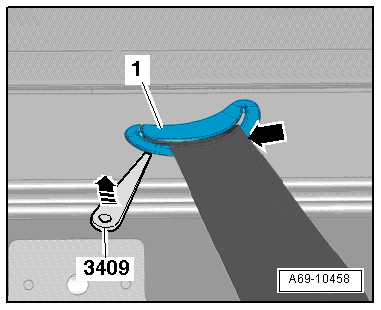

–  Unclip belt guide -1- using removal wedge -3409--left arrow-.
–  Unclip belt guide on opposite side -right arrow- using removal wedge -3409- and lift out of rear shelf.
–  Open belt guide at disconnecting point and thread out belt.
  A69-10458
Installing
Installation is carried out in the reverse order; note the following:

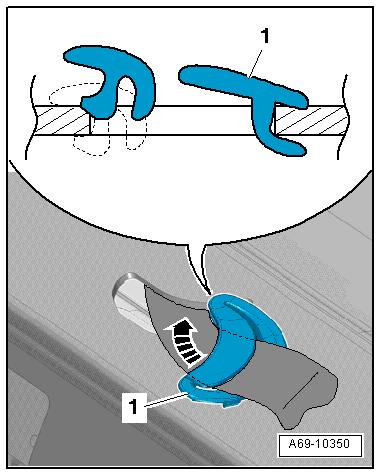

–  Position belt guide -1- with edge turned by approx. 90° above opening in rear shelf (as shown in illustration).
–  Slide belt guide into corner of opening and at the same time turn belt guide into opening -arrow-.
–  Press belt guide down until retaining tabs engage in rear shelf.
  A69-10350
