A4 Mk3

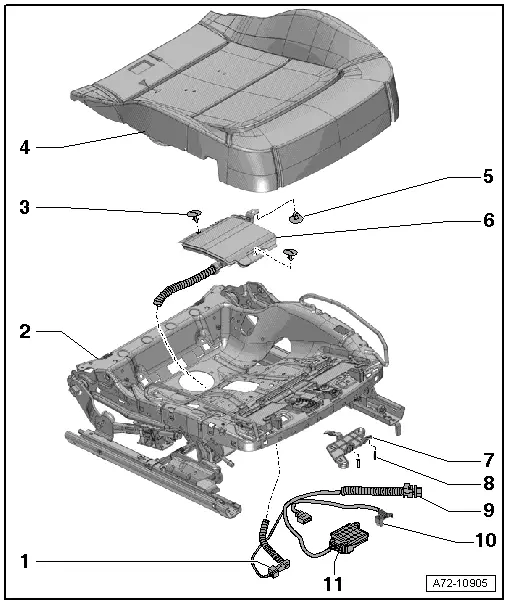

Exploded view of seat occupied recognition system

Exploded view of seat occupied recognition system
  WARNING
The replacement part (service kit) for seat occupied recognition (country-specific version) is already pre-calibrated and the components must NOT be disconnected. The service kit consists of:
t  Seat occupied recognition control unit -J706-
t  Pressure sensor for seat occupied recognition -G452-
t  Seat occupied sensor mat
t  Seat padding
t  Wiring harness between seat occupied recognition control unit -J706- and pressure sensor -G452-.
  WARNING
Observe safety regulations for working on seat occupied sensors → Chapter.
  Note
The seat occupied sensor is only fitted in the front passenger's seat.
1 - Pressure sensor for seat occupied recognition -G452-
q   Is part of same component with seat occupied sensor mat
q   Removing and installing → Chapter
q   Do not unplug electrical connector
2 - Seat pan
3 - Retaining clip
4 - Padding
q   For seat pan
q   Do not separate from seat occupied sensor mat -6-
5 - Retaining clip
q   Do not release
6 - Mat
q   For seat occupied recognition
q   Is part of same component with pressure sensor for seat occupied recognition -G452-
q   Do not separate from seat pan padding -4-
q   Removing and installing → Chapter
7 - Mounting
q   For seat occupied recognition control unit -J706-
8 - Spreader pin
q   For securing retainer to seat pan
9 - Electrical wiring harness
q   Do not separate from pressure sensor for seat occupied recognition -G452- and seat occupied recognition control unit -J706-.
10 - Front passenger side seat position sensor -G554-
q   Is component of electrical wiring harness -9-
q   Removing and installing → Chapter
11 - Seat occupied recognition control unit -J706-
q   Removing and installing → Chapter
q   Do not unplug electrical connector
