Removing and installing seat cushion fan > < Removing and installing retainer for seat adjustment control unit with memory function (seat ventilation integrated)

A4 Mk3

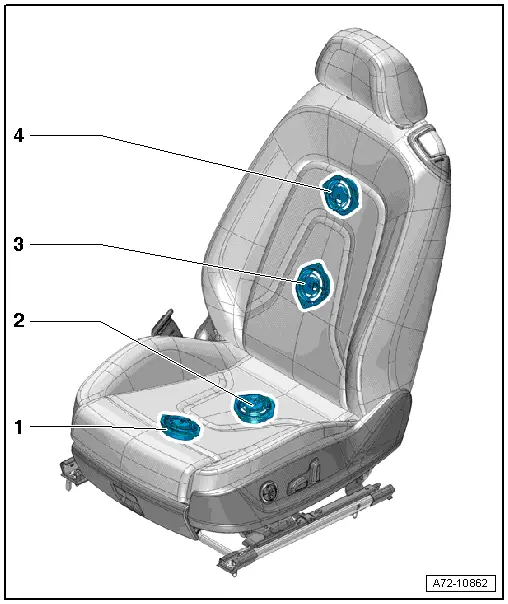

Overview of seat cushion and backrest fans

Overview of seat cushion and backrest fans
1 - Seat cushion fan
q   Driver side: driver seat cushion fan -V390-
q   Passenger side: front passenger seat cushion fan -V391-
q   Removing and installing → Chapter
2 - Seat cushion fan 2
q   Driver side: driver seat cushion fan 2 -V419-
q   Passenger side: front passenger seat cushion fan 2 -V420-
q   Removing and installing → Chapter
3 - Backrest fan 2
q   Driver side: driver seat backrest fan 2 -V417-
q   Passenger side: front passenger seat backrest fan 2 -V418-
q   Removing and installing → Chapter
4 - Backrest fan
q   Driver side: driver seat backrest fan -V388-
q   Passenger side: front passenger seat backrest fan -V389-
q   Removing and installing → Chapter

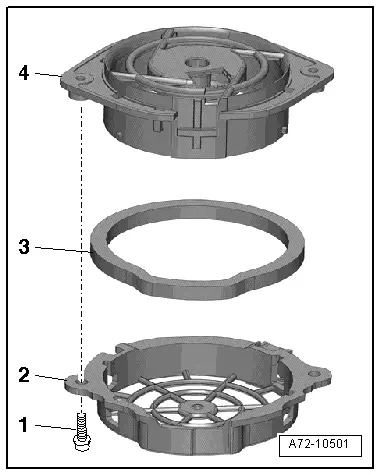

Exploded view of seat cushion fan
1 - Bolt, 1.5 Nm
2 - Grille
3 - Seal
4 - Seat cushion fan
  A72-10501
