A4 Mk3

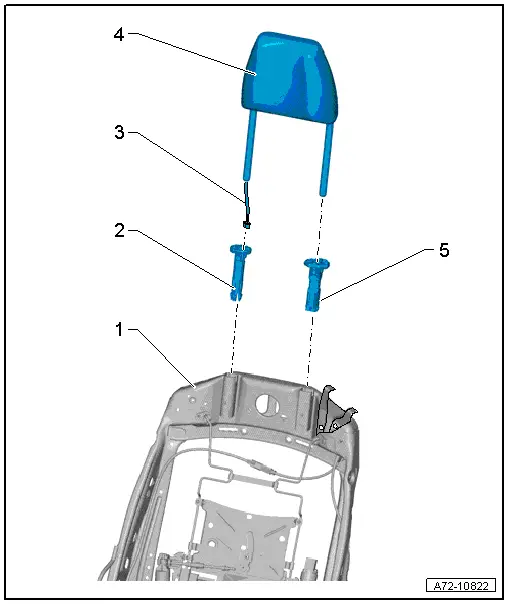

| Exploded view of head restraint (with electric adjustment) |
Note| For greater clarity, the cover with padding for the backrest is not shown in the illustration. |
| 1 - | Front seat backrest |
| 2 - | Head restraint guide |
| q | Without release button |
| q | Removing and installing → Chapter |
| q | Always fitted on right side of backrest |
| 3 - | Wire |
| q | With connector |
| q | Permanently connected to head restraint |
| 4 - | Head restraint |
| q | Driver side: with driver seat head restraint adjustment motor -V103-/head restraint height adjustment sender for driver seat -G217- |
| q | Passenger side: with front passenger seat head restraint adjustment motor -V104-/head restraint height adjustment sender for front passenger seat -G282- |
| q | Removing and installing → Chapter |
| q | Only cover, padding and entire base frame of head restraint can be renewed |
| q | It is not possible to disassemble base frame or renew electrical and electronic components installed in base frame |
| 5 - | Head restraint guide |
| q | With release button |
| q | Removing and installing → Chapter |
| q | Always fitted on left side of backrest |
