A4 Mk3

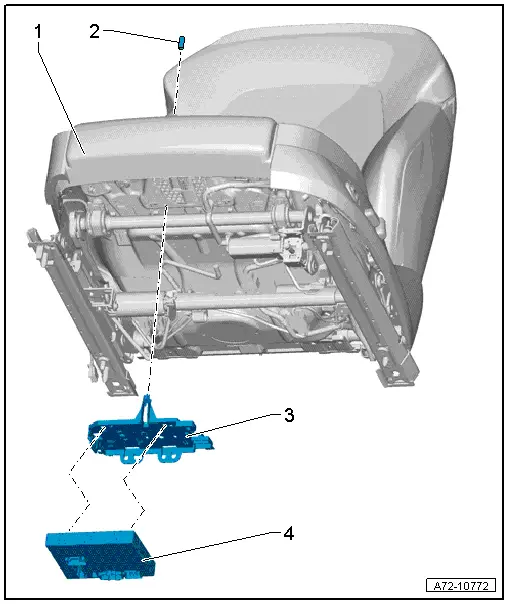

Exploded view of seat and steering column adjustment control unit with memory function |
1 - | Front seat |
2 - | Pin |
q | For securing retainer to seat pan |
3 - | Retainer |
q | Removing and installing → Chapter |
q | Engaged in seat pan and clipped on |
4 - | Seat and steering column adjustment control unit with memory function |
q | Driver side: seat and steering column adjustment control unit with memory -J136- |
q | Passenger side: front passenger seat adjustment with memory control unit -J521- |
q | Equipment version with seat heating or convenience seat (driver side): control unit for front left seat ventilation -J800- (integrated seat heating function) |
q | Equipment version with seat heating or convenience seat (front passenger side): control unit for front right seat ventilation -J799- (integrated seat heating function) |
q | Clipped to retainer |
q | Removing and installing → Chapter |
