A4 Mk3

Removing and installing retaining bracket for trim (sill side)
Removing and installing retaining bracket for trim (sill side)

Removing
–  Remove trim (sill side) → Chapter.

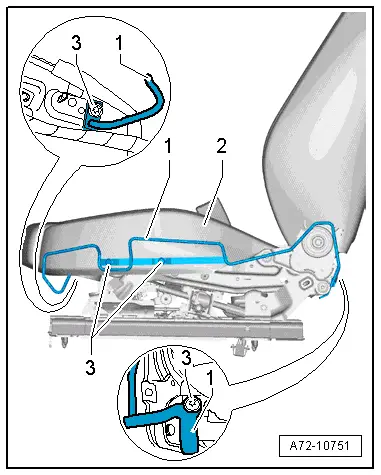

–  Remove bolts -3- (4x).
–  Detach retaining bracket -1- from front seat -2-. When doing so, detach any cable ties from retaining bracket.
Installing
Install in reverse order of removal.
Tightening torque → Chapter
  A72-10751
