Removing and installing seat adjustment actuator
Removing and installing seat adjustment actuator
The seat adjustment actuator consists of:
t  Driver seat longitudinal adjustment switch -E363- / front passenger seat longitudinal adjustment switch -E64-
t  Driver seat rake adjustment switch -E222- / front passenger seat rake adjustment button -E334-
t  Driver seat height adjustment switch -E364- / front passenger seat height adjustment switch -E365-
  Note
The seat adjustment actuator can be removed and installed with the front seat in position.
Special tools and workshop equipment required

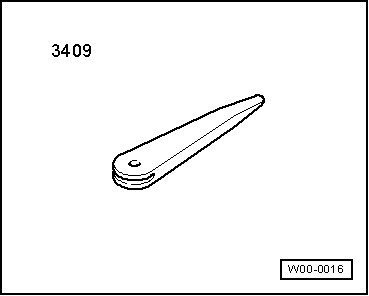

t  Removal wedge -3409-
  W00-0016
Removing

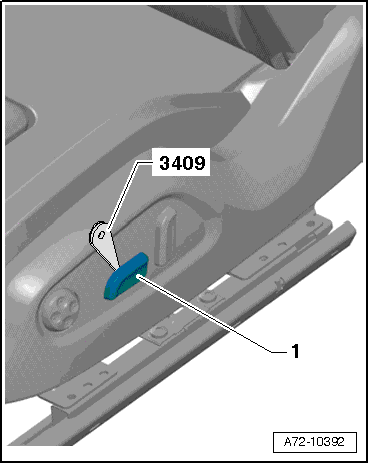

–  Use removal wedge -3409- to prise seat adjustment actuator -1- off catch.
Installing
Install in reverse order of removal.
  A72-10392
