A4 Mk3

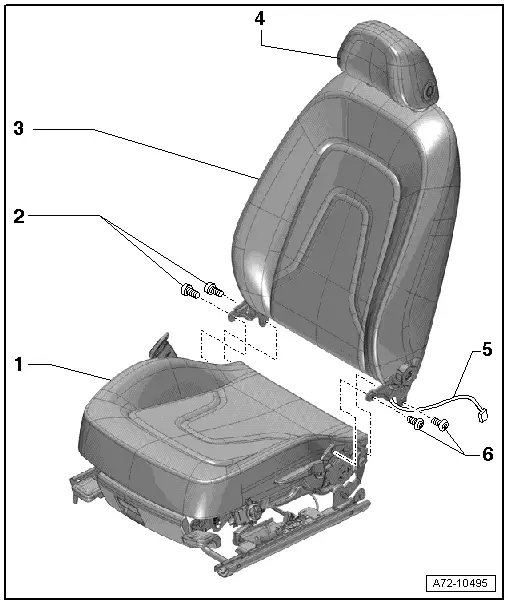

| Exploded view of front seat backrest |
Note| The exploded view relates to the standard seat (front). The front seat backrest is similar on the other seat versions. |
| 1 - | Seat pan |
| 2 - | Bolts |
| q | Self-locking |
| q | Always renew after removing |
| q | Clean threaded holes for bolts using e.g. a thread tap |
| q | 33 Nm |
| 3 - | Backrest |
| q | Removing and installing → Chapter |
| 4 - | Head restraint |
| q | Removing and installing head restraint (with manual adjustment) → Chapter |
| q | Removing and installing head restraint (with electric adjustment) → Chapter |
| 5 - | Wiring harness |
| q | Continuous from side airbag to connector point |
| q | Depending on equipment version there may also be additional wiring harnesses, e.g. seat heating, lumbar support |
| 6 - | Bolts |
| q | Self-locking |
| q | Renew |
| q | 33 Nm |
|
|
|
|
