Exploded view of two-piece backrest cover panel with trim for backrest frame - equipment version > < Removing and installing front seat backrest

A4 Mk3

Removing and installing retaining plate for DVD player
Removing and installing retaining plate for DVD player

Removing
–  Remove cover and padding for front seat backrest → Chapter.

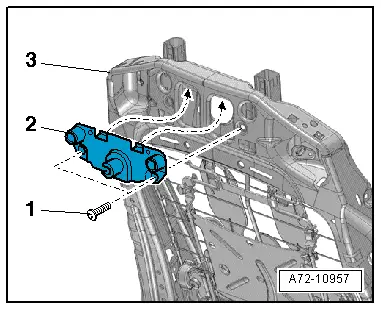

–  Remove bolts -1-.
–  Detach retaining plate -2- for screen bracket.
  A72-10957

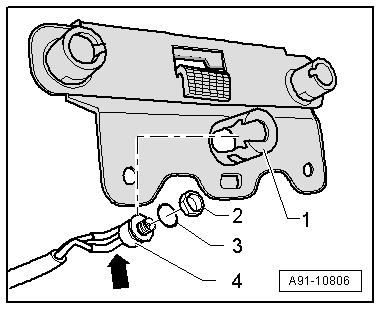

–  Loosen nut -2-.
–  Guide charger socket -4- with washer -3- out of mounting -1-.
Installing
Installation is carried out in reverse order; note the following:
–  Pull washer -3- upwards and slide charger socket -4- into mounting -1- from the side.
l  Charger socket must be positioned centrally in mounting.
–  Hold charger socket in this position and tighten nut.
  A91-10806
–  Engage hook of retaining plate in backrest frame -3--arrows-.
–  Tighten bolts.
Tightening torques → Fig., → Fig.
  A72-10957

Exploded view of two-piece backrest cover panel with trim for backrest frame - equipment version > < Removing and installing front seat backrest
