Removing and installing centre armrest with bracket and hinges (fixed rear seat backrest)

Removing

–	Remove back panel trim → Chapter.

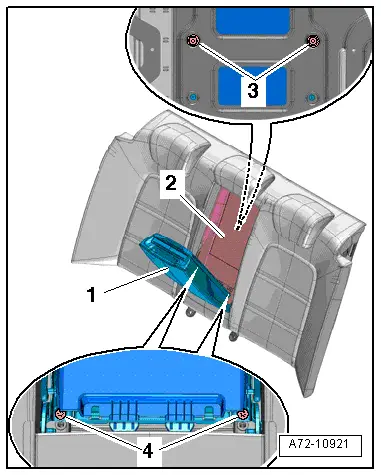

–	Unscrew nuts (left and right) -3- for bracket evenly.

–	Fold open centre armrest -1- so that it is ²/₃ open and remove bolts -4-.

–	Detach centre armrest with bracket and hinges from rear seat backrest.

Installing

Installation is carried out in the reverse order; note the following:

–	Tighten nuts (left and right)-3- for bracket evenly and alternately.

Tightening torques → Chapter
