A4 Mk3

Removing and installing cover for backrest bracket
Removing and installing cover for backrest bracket

Removing
–  Remove centre armrest  → Chapter.
–  Remove trim for backrest bracket  → Chapter.

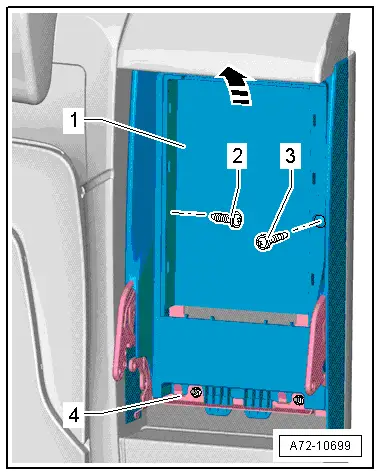

–  Unscrew bolts -2- and -3- at cover for backrest bracket -1-.
  A72-10699

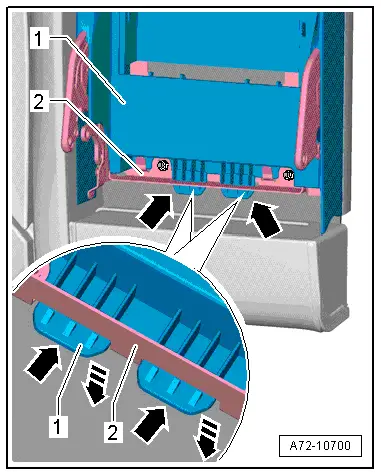

–  Press lugs -arrows- in direction of -arrow- until retaining tabs of lugs for cover for backrest bracket -1- are disengaged at bracket -2-.
  A72-10700
–  Detach cover for backrest bracket -1- in direction of -arrow- (upwards and to front at an angle) from bracket -4-.
–  Take out cover for backrest bracket.
Installing
Install in reverse order of removal.
Tightening torques → Chapter
  A72-10699
