A4 Mk3

Removing and installing flap for load-through hatch
Removing and installing flap for load-through hatch

Removing
–  Remove centre armrest with flap for load-through hatch → Chapter.

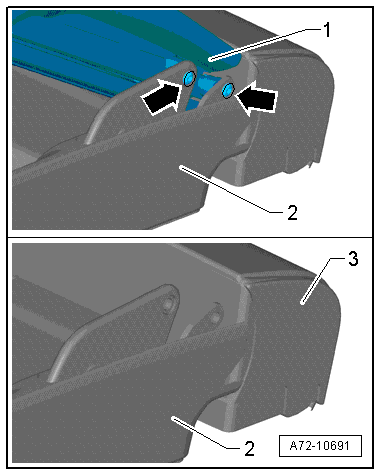

–  Fold up centre armrest -1- so that it is 2/3 open.
–  Unscrew bolts -arrows- (4x).
–  Detach flap of load-through hatch -2- from centre armrest.
–  Remove intermediate padding -3- → Chapter.
Installing
Install in reverse order of removal.
Tightening torques → Chapter
  A72-10691
