Removing and installing storage compartment (cover for backrest bracket with lid)
Removing and installing storage compartment (cover for backrest bracket with lid)
  Note
The lid can only be renewed together with the storage compartment (cover for backrest bracket).

Removing
–  Remove centre armrest  → Chapter.

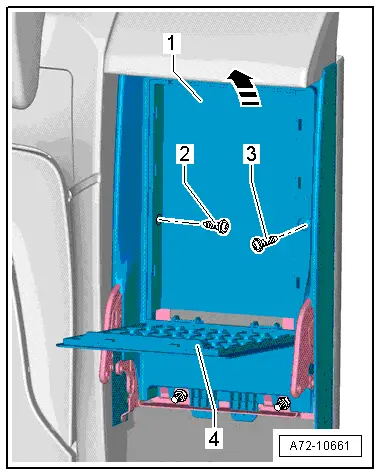

–  Open lid -4- of storage compartment (cover for backrest bracket) -1-.
–  Remove bolts -2- and -3-.
  A72-10661

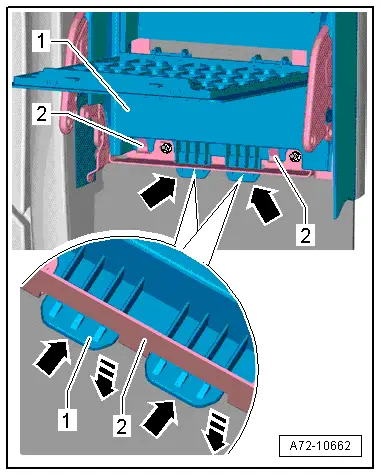

–  Press lugs -arrows- on storage compartment (cover for backrest bracket with lid) -1- in direction of -arrow- until retaining tabs of lugs are disengaged at bracket -2-.
  A72-10662
–  Detach storage compartment (cover for backrest bracket with lid) -1- in direction of -arrow- (upwards and to front at an angle) from bracket.
–  Take out storage compartment (cover for backrest bracket with lid).
Installing
Install in reverse order of removal.
Tightening torques → Chapter
