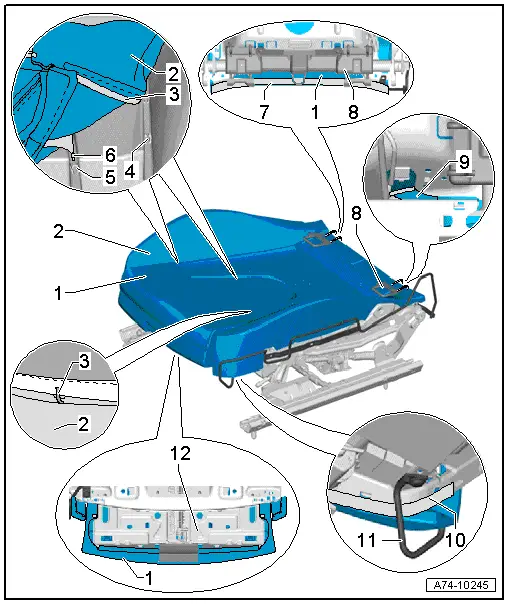

| Exploded view of seat cover and padding (seat pan with seat depth adjustment) |
Note| The exploded view relates to the sports seat (front, with manual or electric adjustment) and the super sports seat. |
| 1 - | Seat cover |
| q | With padding for seat depth adjustment |
| q | Removing and installing → Chapter |
| q | Detaching cover from padding and assembling → Chapter |
| 2 - | Seat cover |
| q | With padding for seat cushion |
| q | Removing and installing → Chapter |
| q | Detaching cover from padding and assembling → Chapter |
| 3 - | Fastening strip |
| q | Fastened in clip -item 4- |
| q | Stitched to cover |
| Upholstery clip |
| q | Only on seats with leather cover |
| q | For attaching cover to padding |
| q | Always renew after removing |
| q | Re-attach at same location |
| 4 - | Clip |
| q | Foam-fitted in padding |
| 5 - | Clip |
| q | Foam-fitted in padding |
| q | Only on seats with fabric cover |
| 6 - | Contour wire |
| q | Inserted into pouch on seat cover |
| q | Fastened in clip -item 5- |
| 7 - | Fastening strip |
| q | Stitched to cover |
| q | For engaging cover at upper seat pan frame (at rear) |
| 8 - | ISOFIX child seat anchor |
| q | Exploded view → Chapter |
| q | Removing and installing → Chapter |
| 9 - | Lug |
| q | With fastening strip |
| q | Stitched to cover |
| q | For engaging cover at upper seat pan frame (at side) |
| 10 - | Fastening strip |
| q | Stitched to cover |
| q | For engaging cover on upper seat pan frame (at front and side), except area of seat depth adjustment cushion |
| 11 - | Retaining bracket |
| q | For trim (sill side) |
| Sports seat (front, with manual adjustment) |
| q | Removing and installing → Chapter (retaining bracket not shown in illustration) |
| Sports seat (front, with electric adjustment) and super sports seat |
| q | Removing and installing → Chapter |
| 12 - | Seat depth adjuster |
