A4 Mk3

Detaching seat cover from padding (backrest with load-through hatch)
Detaching seat cover from padding (backrest with load-through hatch)
Special tools and workshop equipment required

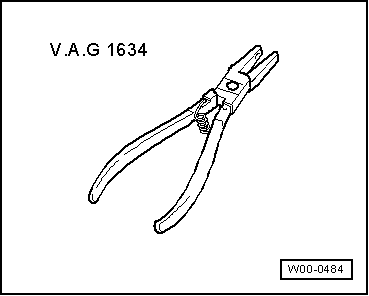

t  Upholstery clip pliers -V.A.G 1634-
  W00-0484
Removing

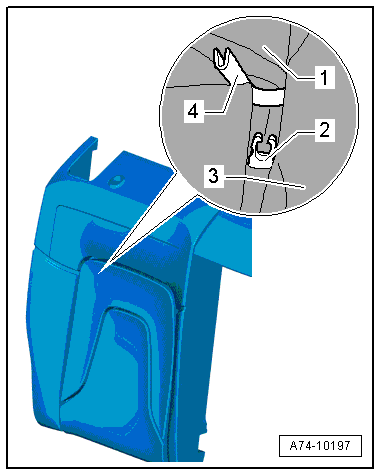

–  Remove cover with padding → Chapter.
–  Detach cover -1- as far as possible from padding -3-.
–  Release fastening strip -4- from clips -2-.
–  Detach cover from padding.
  A74-10197

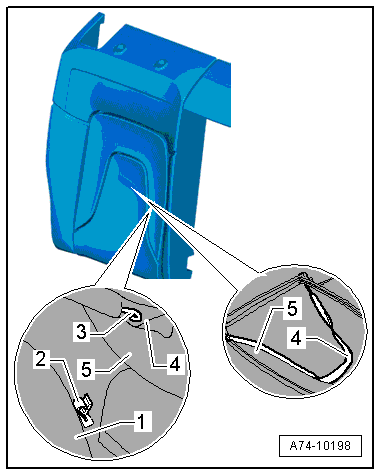

Equipment version with fabric covers:
–  Unclip contour wire -3- (inserted in pouch -4- of cover -5-) from clips -2-.
–  Detach cover from padding -1-.
  A74-10198
Equipment version with leather covers:
–  Use pliers -4- to pinch off upholstery clips -3-.
–  Detach cover -1- from padding -2-.
Installing
Installation is carried out in the reverse order; note the following:
–  On equipment version with leather seats, use upholstery clip pliers -V.A.G 1634- to fit new upholstery clips.
  A74-10272
