A4 Mk3

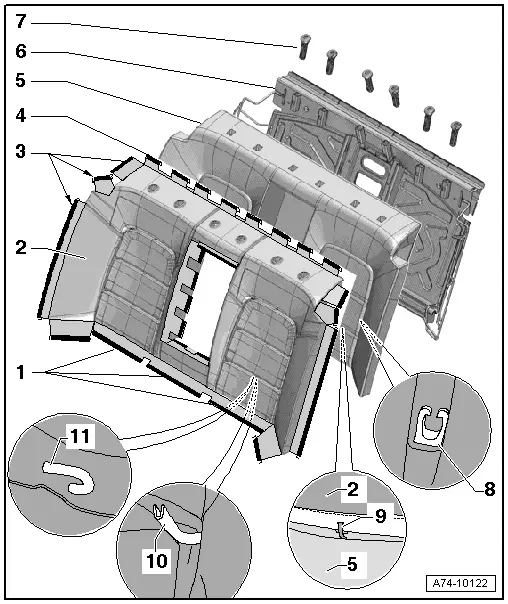

| Exploded view of seat cover and padding (fixed rear seat backrest) |
| 1 - | Fastening strip |
| q | Stitched to cover |
| q | For engaging cover in backrest frame |
| 2 - | Seat cover |
| q | Removing and installing → Chapter |
| q | Detaching cover from padding → Chapter |
| 3 - | Fastening strip |
| q | Stitched to cover |
| q | For engaging cover in backrest frame |
| 4 - | Piping |
| q | Stitched to cover |
| q | For engaging cover in backrest frame |
| 5 - | Padding |
| q | Removing and installing → Chapter |
| q | Detaching cover from padding → Chapter |
| 6 - | Backrest frame |
| 7 - | Head restraint guide |
| q | Removing and installing → Chapter |
| 8 - | Clip |
| q | Foam-fitted in padding |
| 9 - | Upholstery clip |
| q | Only on seats with leather cover |
| q | For attaching cover to padding |
| q | Always renew after removing |
| q | Re-attach at same location |
| 10 - | Fastening strip |
| q | Stitched to cover |
| q | For attaching cover to padding |
| 11 - | Contour wire |
| q | Inserted into pouch on seat cover |
