Removing and installing brackets for glove box
Removing and installing brackets for glove box

Removing

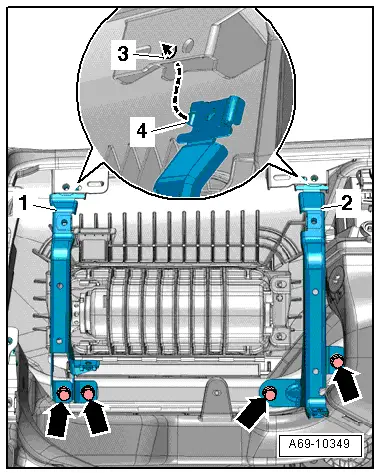

–  Remove bolts -arrows-.
–  Detach brackets for glove box on left -1- and right -2-.
Installing
–  Position both glove box brackets so that lug -4- engages in hole -3- in dash panel.
Perform remaining installation in reverse order of removal.
Tightening torque → Chapter
  A69-10349
