Removing and installing impact damper (left-side) - country-specific version
Removing and installing impact damper (left-side) - country-specific version

Removing
–  Remove dash panel cover (driver side) → Chapter.

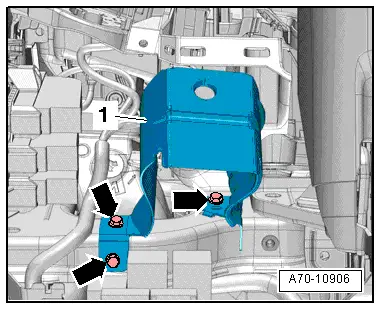

–  Remove bolts -arrows-.
–  Take out impact damper (left-side) -1- downwards.
Installing
Install in reverse order of removal.
Tightening torques → Chapter
  A70-10906
