Removing and installing dash panel end trim
Removing and installing dash panel end trim
  Note
Removal and installation are identical on the left and right.
Special tools and workshop equipment required

t  Removal wedge -3409-
  W00-0016
Removing

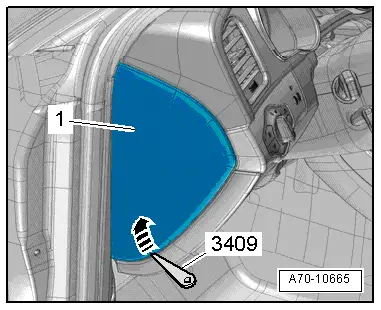

–  Prise off dash panel end trim -1- using removal wedge -3409--arrow- and detach.
Installing
Installation is carried out in the reverse order; note the following:
–  Press on dash panel end trim until it engages audibly.
  A70-10665
