Removing and installing top defroster vent (centre)
Removing and installing top defroster vent (centre)

Removing
–  Remove dash panel → Chapter.

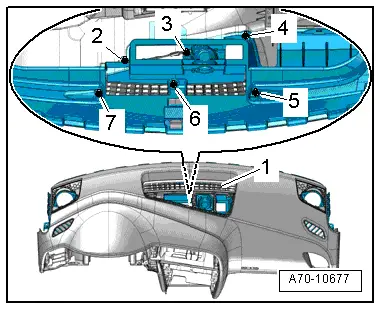

–  Unscrew nuts -2 ... 7- on underside of dash panel.
–  Lift top defroster vent (centre) -1- off dash panel.
Installing
Installation is carried out in the reverse order; note the following:
  Note
When tightening the nuts, make sure that the distance between the top of the dash panel and the top edge of the top centre defroster vent is the same and that gap width is the same all around.
Tightening torque → Chapter
  A70-10677
