Removing and installing mid-range loudspeaker trim
Removing and installing mid-range loudspeaker trim
  Note
Removal and installation are described for the driver's door. The procedures are similar for the other doors.
Special tools and workshop equipment required

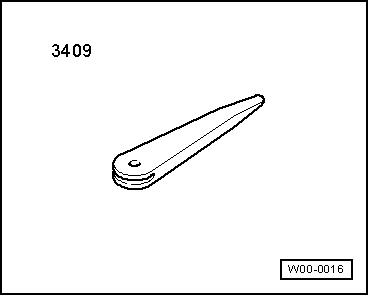

t  Removal wedge -3409-
  W00-0016
Removing

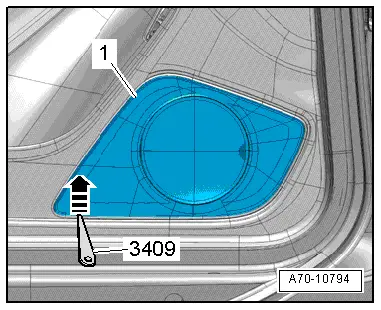

–  Use removal wedge -3409- to prise loudspeaker trim -1- off door trim along gap -arrow- and detach.
Installing
Installation is carried out in the reverse order; note the following:
–  Press on loudspeaker trim until it engages audibly.
  A70-10794
