Removing and installing door trim (rear)   Note Removal and installation are identical on the left and right. Special tools and workshop equipment required

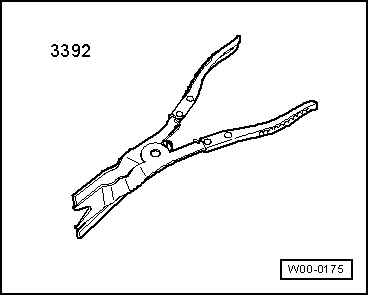

t  Removal pliers -3392-

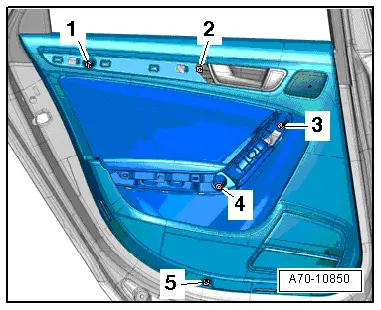

Removing –  Switch off ignition and remove ignition key. –  Remove trim panel → Chapter. –  Remove armrest trim → Chapter. –  Remove bolts -1 ... 5-.

–  Starting in bottom rear corner, use removal pliers -3392- to unclip door trim from door. To do so, insert removal pliers between door trim and door in area of retaining clips.

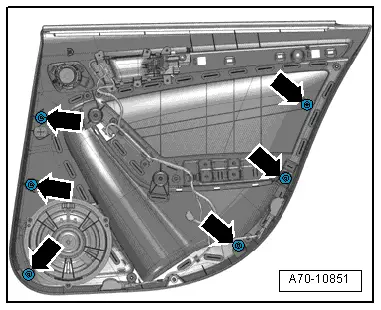

l  Position of retaining clips -arrows- –  Disengage door trim from door at top of window slot. To do so, pull door trim upwards.

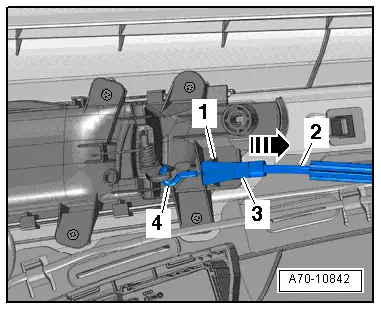

–  Carefully disengage catch -3- at cable support bracket -1-. –  Pull Bowden cable -2- for interior door handle out of cable support bracket in direction of -arrow-. –  Disengage end of cable -4- at interior door handle. –  Equipment version with treble loudspeaker: Unplug electrical connector for treble loudspeaker.

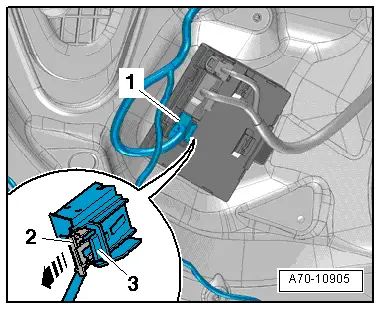

–  Unplug electrical connector -1- at door control unit. To do so, pull out fastener -2--arrow- and press down release mechanism -3-. –  Detach door trim.

Installing –  Engage end of cable -4- in lever of interior door handle. l  Open side of eyelet at end of cable must face upwards. –  Pull Bowden cable -2- for interior door handle in direction of -arrow- and insert it in cable support bracket -1-. l  Catch -3- must engage audibly in cable support bracket. –  Plug in electrical connector at door control unit. –  Position door trim at window slot and press on downwards. –  Carefully position clips for door trim on door and press door trim onto door until it engages audibly at anchorage points. Perform remaining installation in reverse order of removal. Tightening torque → Chapter
