Removing and installing bag hook
Removing and installing bag hook
  Note
Removal and installation are identical on the left and right.

Removing

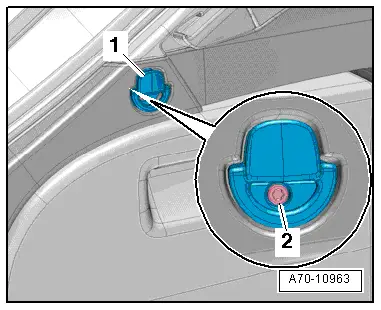

–  Unscrew bolt -2- and detach bag hook -1-.
Installing
Install in reverse order of removal.
Tightening torque → Chapter
  A70-10963
