Removing and installing mounting for load guard
Removing and installing mounting for load guard
Removing and installing mounting for load guard
Note
Removal and installation are identical on the left and right.
Removing
–

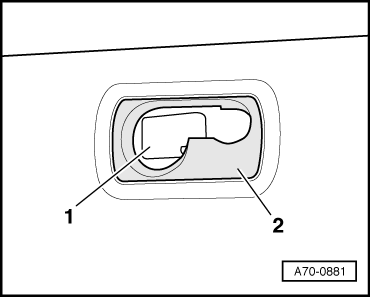

Press flap
-1-
towards rear and unscrew bolt behind cap on mounting
-2-
for load guard.
Installing
Install in reverse order of removal.
Tightening torque
→ Chapter
