A4 Mk3

Removing and installing retainer for luggage compartment floor covering
Removing and installing retainer for luggage compartment floor covering
Special tools and workshop equipment required

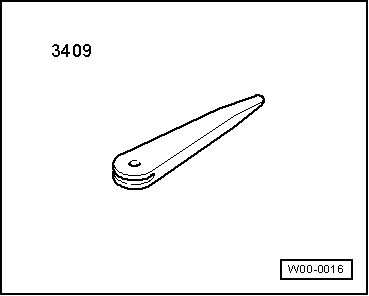

t  Removal wedge -3409-
  W00-0016
Removing
–  Remove luggage compartment floor covering → Chapter.

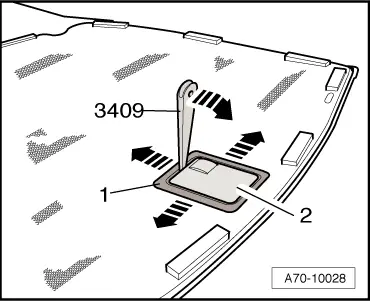

–  Use removal wedge -3409- to release retaining frame -1--arrows-.
–  Disengage retaining frame and detach retainer for luggage compartment floor covering -2-.
Installing
Installation is carried out in the reverse order; note the following:
–  The retaining frame can only be pressed onto the retainer for luggage compartment floor covering in one position.
  A70-10028
