Removing and installing retainer (front) for D-pillar trim
Removing and installing retainer (front) for D-pillar trim
  Note
Removal and installation are identical on the left and right.

Removing
–  Remove D-pillar trim → Chapter.

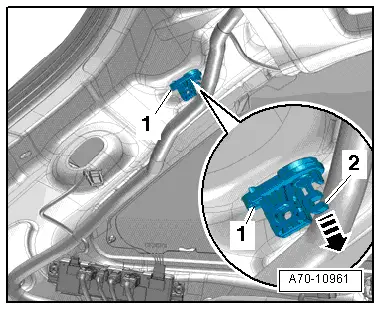

–  Pull out pin -2--arrow- with a screwdriver.
–  Unclip retainer -1- from body and detach.
Installing
Install in reverse order of removal.
  A70-10961
