A4 Mk3

Removing and installing cover for warning triangle
Removing and installing cover for warning triangle
Special tools and workshop equipment required

t  Removal wedge -3409-
  W00-0016
Removing

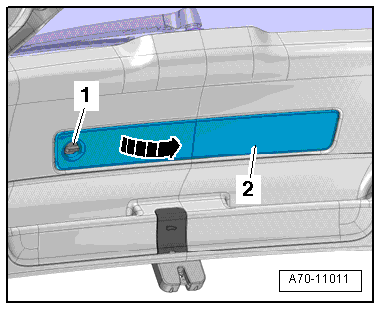

–  Turn quick-release fastener -1- 90° (anti-clockwise) and unclip cover -2- from rear lid trim (bottom) in direction of -arrow- using removal wedge -3409-.
–  Disengage cover from trim (bottom) and detach.
–  Take warning triangle out of bracket.
Installing
Installation is carried out in the reverse order; note the following:
–  Press on cover for warning triangle until it engages audibly.
  A70-11011
