A4 Mk3

Removing and installing rear lid trim (top)
Removing and installing rear lid trim (top)
Special tools and workshop equipment required

t  Removal lever -80 - 200-
  W00-0353
Removing
–  Remove rear lid trim (bottom) → Chapter.

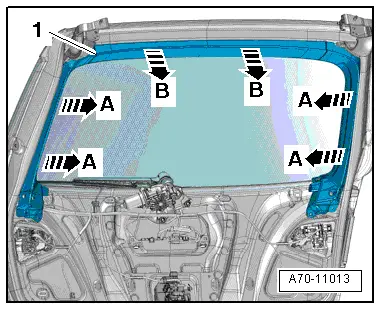

–  First unclip rear lid trim (top) -1- from rear lid from the side using removal lever -80 - 200--arrows A-.
–  Then unclip rear lid trim (top) from rear lid using removal lever -80 - 200--arrows B- and detach.
  A70-11013
Installing
Installation is carried out in the reverse order; note the following:
  Note

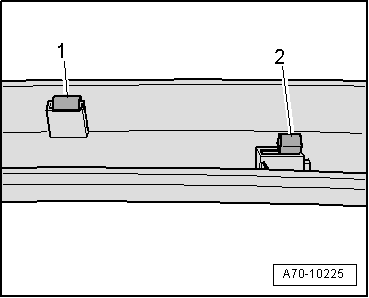

t  If there are still trim clips -2- in the rear lid mounting points, they must be removed and inserted in the trim when installing.
t  Check the clips for damage or deformation and renew them if necessary.
–  Check that all rubber buffers -1- are fitted in trim.
–  First insert trim behind side window frames of rear lid.
–  Clip in rear lid trim, first at top and then at sides.
  A70-10225
