Removing and installing roof grab handle
Removing and installing roof grab handle
Special tools and workshop equipment required

t  Angled screwdriver -VAS 6543-
  W00-10740
Removing
  Caution

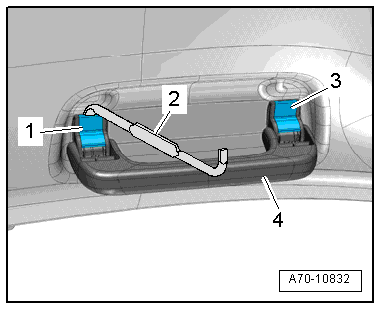

Unclip expanding caps -1- and -3- only up to locking position (do not pull out completely as silicon stop and spring could fall out and handle would then have to be renewed).
–  Unclip expanding caps -1- and -3- up to locking position using angled screwdriver -VAS 6543--item 2-.
–  Take roof grab handle -4- out of cut-out in body.
Installing
–  Insert roof grab handle in cut-out in body.
–  Press on expanding caps for roof grab handle until they engage fully.
  A70-10832
