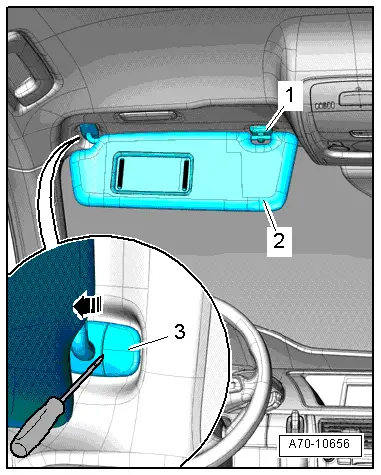

| Disengage sun visor -2- in centre of vehicle at centre bracket -1- for sun visor. |
| –
| Use a screwdriver to unclip expanding cap -3-. |
| –
| Swivel sun visor bracket downwards -arrow- and take it out. |
| –
| Equipment version with light: Unplug electrical connector and detach sun visor. |
| Installation is carried out in the reverse order; note the following: |
| –
| Engage lug on sun visor bracket in opening in moulded headliner. |
| –
| Press on expanding cap for sun visor until it engages fully. |
|
|
|
