Removing and installing roof end trim
Removing and installing roof end trim
Special tools and workshop equipment required

t  Removal lever -80 - 200-

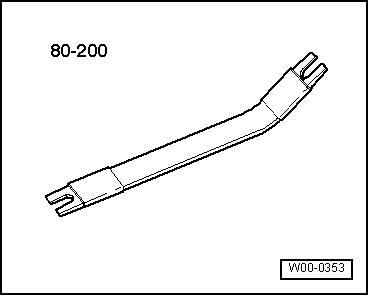

  W00-0353
Removing
–  Working towards rear, carefully unclip roof end trim -1- in centre from roof frame -arrow- using removal lever -80 - 200-.

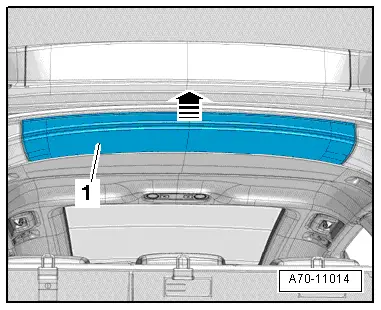

  A70-11014
Installing
Installation is carried out in the reverse order; note the following:
  Note
t  If there are still trim clips in the body mounting points, they must be removed and inserted in the trim when installing.
t  Check the clips for damage or deformation and renew them if necessary.
–  Apply roof end trim -1- so that retaining clip makes contact with D-pillar trim.
–  First apply roof end trim to centring pin on body cut-out and then press on clips until they engage audibly.

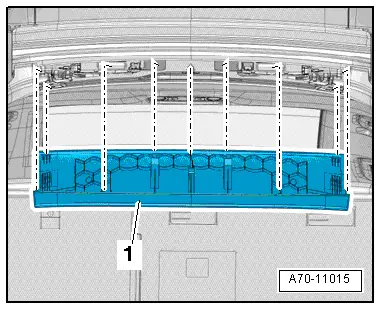

  A70-11015
