A4 Mk3

Connections with valve for refrigerant circuit switches
Connections with valve for refrigerant circuit switches
l  There are different threads for switches on the high and low pressure ends.

l  Only valves and O-rings resistant to R134a refrigerant and the related refrigerant oils are to be used.

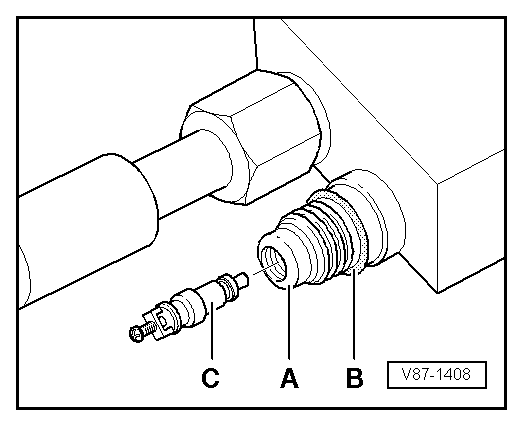

A - Connection (soldered in)
B - O-ring
C - Valve (with O-ring)
  Note
To remove and install the valve core -C- with the refrigerant circuit drained, make use of an adapter from the socket -T10364- for example (tightening torque → Chapter).
  V87-1408
