Removing and installing front exhaust air duct for drive batteryA2
Removing and installing front exhaust air duct for drive battery -A2-
Vehicles with a high-voltage system (hybrid vehicles)
For all work on vehicles with a high-voltage system, pay attention to the additional warnings for such vehicles → Chapter and → Electrical system; Rep. gr.93.
As work in the vicinity of high-voltage system components is necessary for the following sequence of operations, perform „Visual inspection of high-voltage components and cables for damage“ → Chapter and heed the „General warnings for working on high-voltage system“ → Electrical system; Rep. gr.93
  WARNING
Danger from unexpected engine starting
When performing general work on vehicles with a high-voltage system, switch off the ignition and remove the ignition key from the passenger compartment.
  WARNING
Working on vehicles with high-voltage wiring:
l  Do not support yourself or tools on high-voltage wiring or associated components --> this can damage the insulation.
l  High-voltage wiring must not be excessively bent or kinked --> this can damage the insulation.
l  The round high-voltage connectors are colour-coded with an external coloured ring and are provided with mechanical coding or guide lugs. It is important to observe this coding when joining up the round high-voltage connectors, otherwise the connectors can be damaged.
  DANGER!
Risk of fatal injury if high-voltage components are damaged.
Observe the following when working in the vicinity of high-voltage components or wiring:
t  It is not permitted to use cutting or forming tools, other sharp-edged tools or heat sources such as welding, brazing, soldering, hot air or thermal bonding equipment.
t  Before starting work, visually inspect the high-voltage components in the areas involved.
t  Before working in the engine compartment, visually inspect the power electronics -JX1-, electric drive motor -V141-, air conditioner compressor -V470- and high-voltage wiring.
t  Before working on the vehicle underbody, visually inspect the high-voltage wiring and covers.
t  Before working on the rear section of the vehicle, visually inspect the high-voltage wiring and the electro-box with the maintenance connector for high-voltage system - TW -.
t  Visually inspect all potential equalisation lines.
Check the following when making the visual inspection:
t  There must be no external damage on any component.
t  The insulation of the high-voltage wiring and potential equalisation lines must not be damaged.
t  There must be no unusual deformation of the high-voltage wiring.
t  All high-voltage components must be identified by a red warning sticker.
Removing
–  Switch off the ignition.
–  Remove the luggage compartment floor → General body repairs, interior; Rep. gr.70.

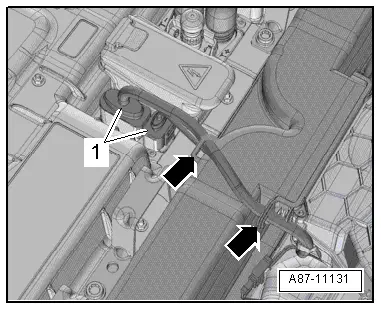

–  Unplug the connectors -1- and lay bare the wiring harness -arrows-.
  A87-11131
–  If fitted, screw out the bolts -1, 5- on the left and right.
–  Release the retainer tabs -2- on the left and right and detach the front exhaust air duct -3- from the battery cooling module -8-.
–  Carefully unclip the front exhaust air duct from the fasteners -6- of the air ducts -4- and -7- and detach.
  A87-11132
Installing
Install in reverse order; paying attention to the following:
  Note

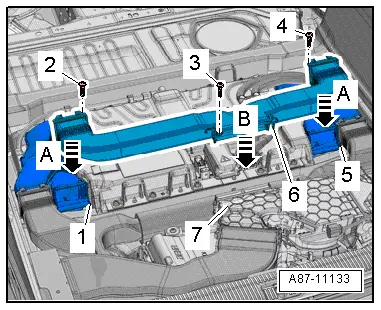

If the fasteners -6- no longer hold or if one of the retainer tabs -1, 5- breaks off, the air duct can also be secured with bolts -2, 3, 4- at the battery cooling module -7-.
–  Start by clipping in the front exhaust air duct in the battery cooling module -7--arrow B-. Then clip into the left -1- and right -5- air ducts -arrows A-.
–  For electrical connections and routing, refer to → Current flow diagrams, Electrical fault finding and Fitting locations.
–  Re-install all other components removed.
–  Switch on the ignition.
–  Interrogate the event recorder of the air conditioner operating and display unit, Climatronic control unit -J255- and erase any faults displayed → "Guided fault-finding" function of vehicle diagnostic, testing and information system VAS 5051.
