Air ducts at battery cooling module > < Components on vehicle floor

A4 Mk3

Components in luggage compartment
Components in luggage compartment
Vehicles with a high-voltage system (hybrid vehicles)
  WARNING
The refrigerant circuit is to be drained before slackening off the bolts at the connection point.

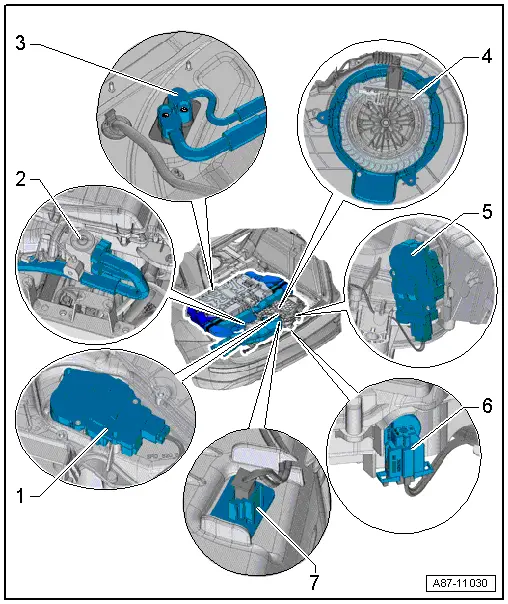

1 - Control motor for air recirculation flap 1 for hybrid battery -V479-
q   Removing and installing → Chapter
2 - Expansion valve with refrigerant shut-off valve 2 for hybrid battery -N517-
q   Removing and installing → Chapter
3 - Opening for refrigerant lines
q   Removing and installing → Chapter
4 - Battery fan 1 -V457-
q   Removing and installing → Chapter
5 - Control motor for air recirculation flap 2 for hybrid battery -V480-
q   Removing and installing → Chapter
6 - Temperature sensor upstream of evaporator for hybrid battery -G756-
q   Removing and installing → Chapter
7 - Temperature sensor downstream of evaporator for hybrid battery -G757-
q   Removing and installing → Chapter

  Note
t  → Chapter „Air ducts at battery cooling module“
t  → Chapter „Components of battery cooling module“
