Renewing oil seal for flange shaft (right-side) with gearbox installed Special tools and workshop equipment required

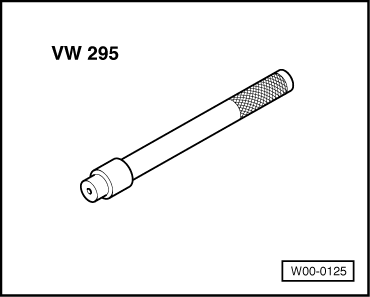

t  Drift -VW 295-

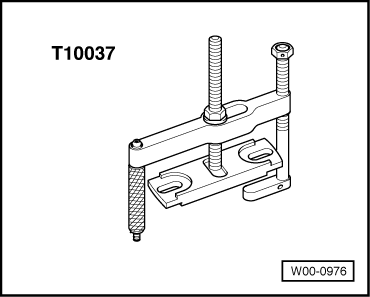

t  Puller -T10037-

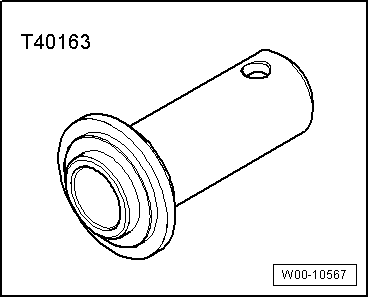

t  Thrust piece -T40163- t  Sealing grease -G 052 128 A1- Removing l  Gearbox is installed. l  Refer to general repair instructions → Chapter. –  Remove front right wheel.

–  Remove noise insulation (rear) -2- → Rep. gr.66.

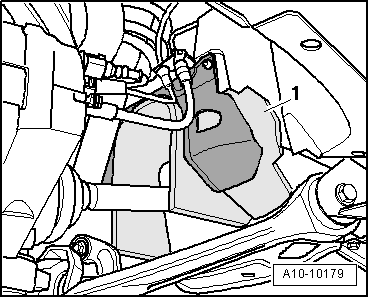

–  If fitted, remove noise insulation -1- from wheel housing (right-side).

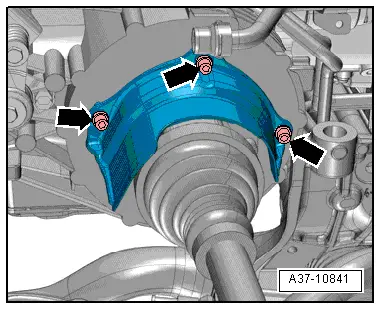

–  Remove bolts -arrows- and detach heat shield for drive shaft (right-side).

–  Detach drive shaft (right-side) from gearbox and place to one side → Rep. gr.40.

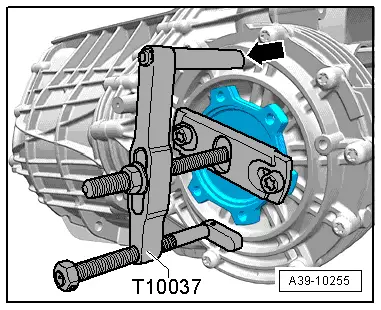

–  Place drip tray under gearbox. –  Remove flange shaft (right-side); to do so, secure puller -T10037- to gearbox housing -arrow-.

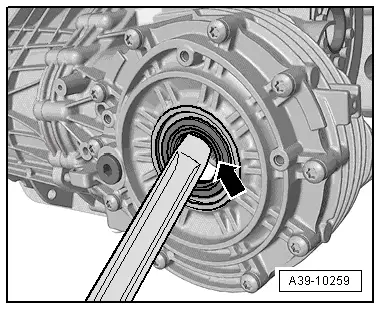

–  Lever out flange shaft oil seal.

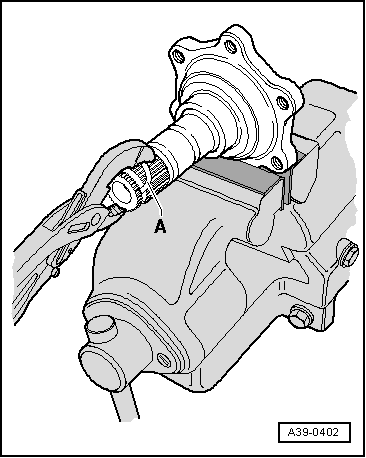

Installing Installation is carried out in reverse sequence; note the following: –  Always renew circlip for flange shaft -A-. –  Clamp flange shaft in vice, using jaw protectors. Use new circlip -A- to press old circlip out of groove in flange shaft.

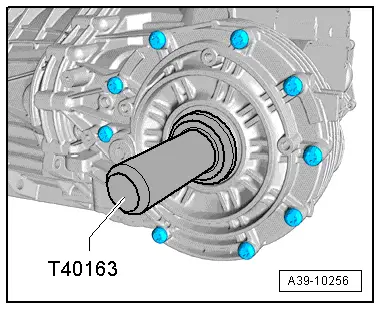

–  Lightly oil outer circumference of new oil seal. –  Drive in new flange shaft oil seal (right-side) as far as stop; keep seal straight when installing. –  Pack space between sealing lip and dust lip half-full with sealing grease -G 052 128 A1-. –  Knock flange shaft in with drift -VW 295-.

–  Bolt drive shaft to flange shaft → Rep. gr.40. –  Fit drive shaft heat shield. –  Fill up oil in gearbox and check oil level → Chapter.

–  If fitted, install noise insulation -1- in wheel housing (right-side). –  Install noise insulation → Rep. gr.66. Tightening torque

Component	Nm
Heat shields for drive shafts to gearbox	23
